Altronix Troves

Altronix Troves are purpose-built enclosures designed to house and organize the various components necessary for powering and controlling access control systems. Troves come in multiple sizes and configurations, allowing customization to specific system requirements.

The benefits of using Altronix Troves

• Centralized organization: Altronix Troves centralize power supplies and accessories, simplifying system installation and ensuring a tidy and organized system layout.
• Enhanced protection: They provide added physical security and environmental protection, reducing the risk of damage to critical components, thus improving system reliability.
• Versatile and reliable: Troves are adaptable for use in single access control systems or complex multi-site deployments, making them a valuable tool for enhancing the efficiency of access control setups.

info

Kisi partners can purchase Altronix Trove panels directly from Anixter.

Using Altronix Troves with Kisi

Altronix offers 4, 8, and 16 door control panel options:

• Altronix 4 door panel - T1KE34
• Altronix 8 door panel - T1KE38
• Altronix 16 door panel - T2KE3316

Technical Specifications

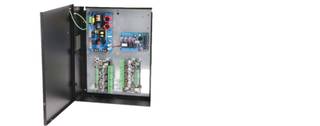

Altronix Trove - 4 Door Panel

• Model Number / SKU: T1KE34

The Altronix T1KE34 kit includes a Trove1 enclosure and a TLU1 Altronix & Kisi backplane. The backplane has a power supply/charger with a voltage of 12VDC or 24VDC (preset to 24VDC at the factory) and a current of 6A. Additionally, it features a fuse-protected output access control module capable of supporting up to four (4) doors.

This kit also accommodates various combinations of Kisi boards for up to four (4) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

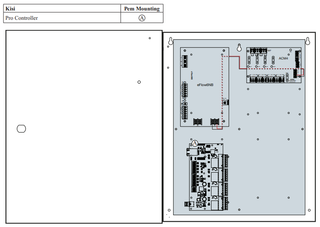

• Access control position chart (T1KE34)

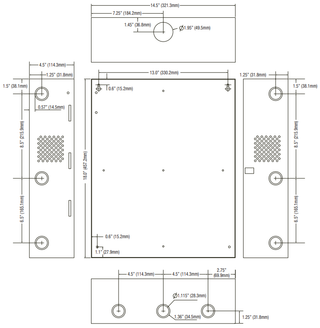

• Layout dimensions (T1KE34)

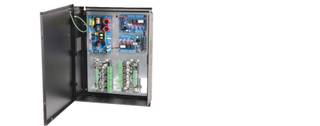

Altronix Trove - 8 Door Panel

• Model Number / SKU: T1KE38

The Altronix T1KE38 kit comprises a Trove1 enclosure and a TLU1 Altronix & Kisi backplane. The backplane is equipped with a 12VDC or 24VDC power supply/charger, factory-set at 24VDC, providing a current of 6A. It includes two (2) fuse-protected output access control modules, each supporting up to four (4) doors. This kit is designed to accommodate various combinations of Kisi boards, allowing for integration with up to eight (8) doors in a single enclosure. The Trove system simplifies board layout and wire management, ultimately reducing installation time and labor costs.

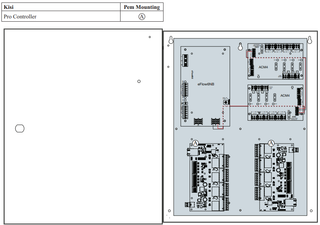

• Access control position chart (T1KE38)

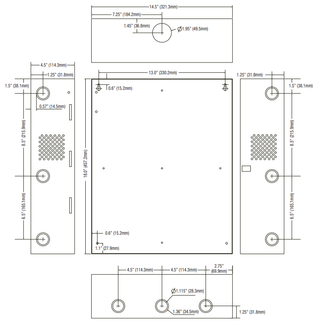

• Layout dimensions (T1KE38)

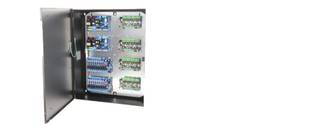

Altronix Trove - 16 Door Panel

• Model Number / SKU: T2KE3316

The Altronix T2KE3316 kit includes a Trove2 enclosure and a TLU2 Kisi/Altronix backplane. The backplane features two (2) 12VDC or 24VDC power supply/chargers, each providing 6A. Additionally, it incorporates two (2) eight (8) fuse-protected output access control modules. This kit is designed to accommodate up to four (4) Kisi Pro Controllers, allowing integration with up to sixteen (16) doors in a single enclosure. The Trove system streamlines board layout and wire management, resulting in reduced installation time and labor costs.

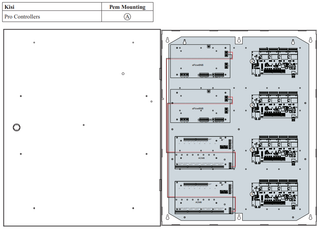

• Access control position chart (T2KE3316)

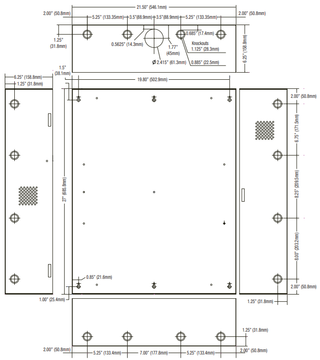

• Layout dimensions (T2KE3316)

Additional installation guides

Model	Manual
4-door kit with fused outputs (T1KE34) 8-door kit with fused outputs (T1KE38) 16-door kit with fused outputs (T2KE3316)	IIT1KE34_38_T2KE3316_L27U.pdf
4-door kit with fused outputs (T1KE34V) 8-door kit with fused outputs (T1KE38V) 16-door kit with fused outputs (T2KE3316V)	IIT1KE34V_38V_T2KE3316V_L27U.pdf
4-door kit with PTC outputs (T1KE34D) 8-door kit with PTC outputs (T1KE38D) 16-door kit with PTC outputs (T2KE3316D)	IIT1KE34D_38D_T2KE3316D_L27U.pdf
4-door kit with PTC outputs (T1KE34DV) 8-door kit with PTC outputs (T1KE38DV) 16-door kit with PTC outputs (T2KE3316DV)	IIT1KE34DV_38DV_T2KE3316DV_L27U.pdf
