Network Visualization

Gain comprehensive insight into your Kisi hardware infrastructure with Network Visualization, helping you identify device dependencies with ease, monitor device connectivity, and detect network issues. This tool offers a clear, visual representation of how your Kisi devices are interconnected across Locks, Elevators, or Zones, enabling proactive troubleshooting and maintenance.

  1. Sign in to Kisi
  2. In the left sidebar, click Insights
  3. Select Network Visualization
  4. Choose the place for which you want to generate the network visualization graph

In addition to viewing the graph in the web dashboard, you can also export it as a PDF or schedule it to be automatically sent via email at your preferred frequency.

info

This dashboard is free for our customers at this time, but will require payment starting in 2025. If you have any feedback or suggestions for improvements, reach out to us.

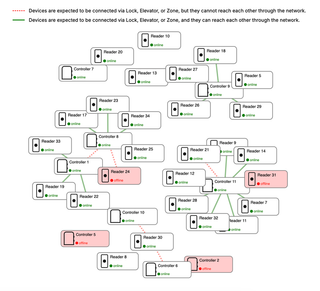

  • The red dashed line indicates devices that are expected to be connected through a Lock, Elevator, or Zone but are currently unable to communicate over the network. This suggests a potential connection issue that may require attention.
  • The green line represents devices that are expected to be connected via a Lock, Elevator, or Zone and are successfully communicating over the network, confirming a healthy connection.
  • Unconnected devices: Devices that do not have any connections to others are not expected to be linked via Lock, Elevator, or Zone. These may function independently or in a different capacity and do not require network communication with other devices in this visualization.
